A new benchmark in analog sound. Driven by TechDAS’ innovative ‘air’ technologies, this turntable realizes our vision of the ultimate analog reproduction.
The TechDAS Air Force turntables feature unique pneumatic technologies including air bearing that absolutely isolates the rotating platter and the record from any vibration. Additionally, our vacuum LP hold-down system clamps an LP onto the platter. With these ‘air’ technologies, the Air Force turntables achieve an unparalleled sound quality, compared to conventional analog turntables.
Today we believe analog sound must evolve beyond its past forms, after more than 30 years of the digital era.
Our pursuit of superior analog sound seeks to push the boundaries of sound-to-noise ratio, drawing inspiration from advancements in modern digital audio.
TechDAS technologies deliver cutting-edge analog sound, redefining performance with precision and innovation.

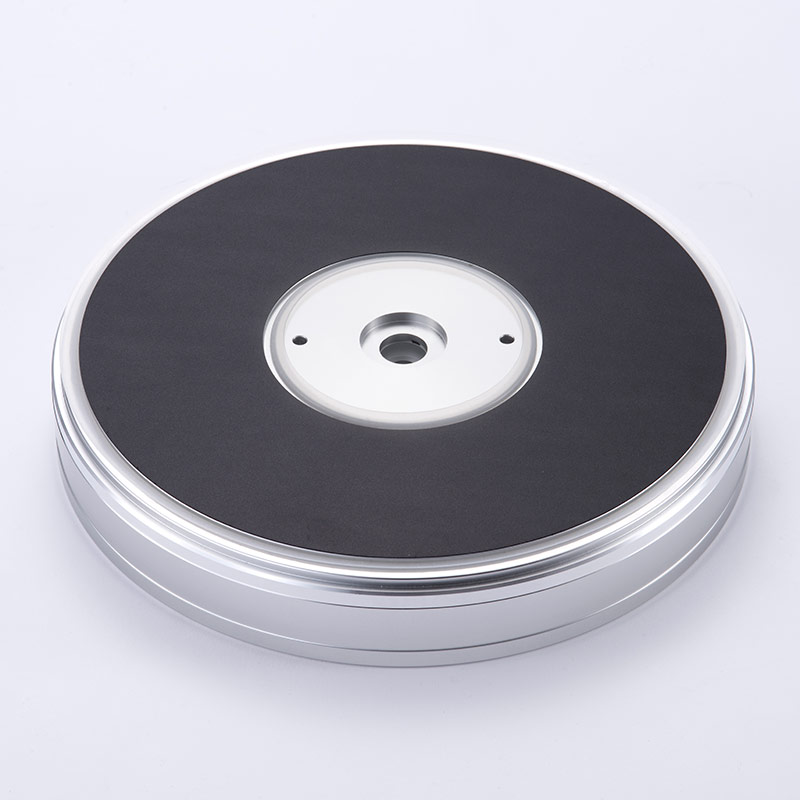

Precision Machined One-Piece Platter
The Air force IV features a Precision Machined One-Piece Platter, a hallmark of our higher-end models
The Air Force IV turntable employs a heavy-weight one-piece platter machined from solid A5056 alloy while the entry model, Air Force V Premium uses a dual platter system. The result is overall improvement in sound quality such as an extended frequency range and noticeably enhanced dynamics.
Combined with our air bearing system, the 9kg platter allows for an extraordinary low noise floor. Its tapered spindle absorbs any swaying of an off center LP. On top of the platter is applied a special thin pad made of a damping and antistatic material to protect records.
Elevating the Entry-Level Experience with Core Air Force Technologies
The Air Force IV is a model uniquely packaged for a higher level of listening experience compared to the popular entry model, Air Force V Premium. While minimizing increase in footprint, Air Force IV has a low vibration, 2-phase 4-pole AC synchronous motor, which is separated and isolated from the main chassis as in the upper models.
The drive belt is a 4mm flat belt in width; the same one used in the upper models. Made of surface polished polyester fiber, this belt ensures stable rotation and quickly brings the heavy platter to a rated speed. By driving the platter with a separated motor unit, it realizes an extremely high signal-to-noise ratio.
The drive belt is a 4mm flat belt in width; the same one used in the upper models. Made of surface polished polyester fiber, this belt ensures stable rotation and quickly brings the heavy platter to a rated speed. By driving the platter with a separated motor unit, it realizes an extremely high signal-to-noise ratio.
Suspension Feet
The Air Force IV sits on four suspension feet incorporating specialized damping materials as the Air Force III Premium S, so that it optimally blocks external vibrations and provides an excellent vibration proof property.

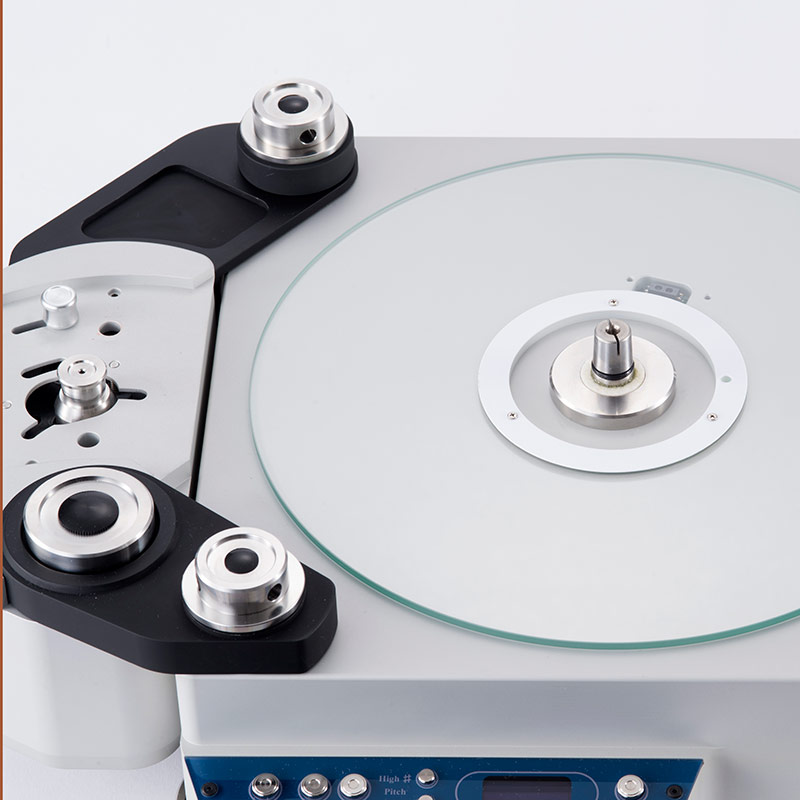

Despite its compact body, it can accommodate up to three tonearms.
Benefitting from various technologies developed for its upper models, the Air Force IV realizes high-resolution sound imaging and enhanced sound quality while remaining compact in size.
The ultimate level of reproduction
TechDAS believe our turntables achieve the ultimate level of reproduction from vinyl. We are committed to pursuing an ideal analog reproduction system, one that equals or exceeds the highest standards and care used when the record was cut in the original production process. In the production of a record, a lathe carves a groove into a lacquer disc, and the disc is held down onto the platter using a vacuum.
The Air Force series re-enacts this same status in record playback to precisely extract and reproduce all information embedded in the groove, and achieving this without adding anything or sacrificing detail. A remarkably black background and low noise levels are made possible by using “air force”, and combined with our innovative rotation mechanism featuring exceptional vibration absorption, you can experience a new dimension of analog sound.
| MAIN UNIT | |
| Chassis | One-piece chassis precision machined from solid aluminum alloy A5052. Silver anodized satin finish |
| Chassis Weight | 21.5 kg |
| Platter | One-piece platter precision machined from solid aluminum alloy A5056 |
| Platter Weight | 8.7 kg |
| Motor Unit | Precision machined aluminum alloy A5052 Silver anodized satin finish |
| Motor Weight | 4.1 kg |
| Total moment of inertia | 734kg/cm2 |
| Drive system | Belt-drive with double-side polished polyester fabric flat belt |
| Driving motor | External 2-phase 4-pole AC synchronous motor |
| Motor Power Supply | Digital rotational control system driven by power amplifier |
| Rotational speed: | 33.3rpm, 45 rpm |
| Wow & Flutter | below 0.03% |
| Dimensions | 420.5 (W) x 168 (H) x 368 (D) mm |
| Total Weight | 34.3 kg |
| Minimum dimensions for setting up | 521 (W) x 418 (D) mm |

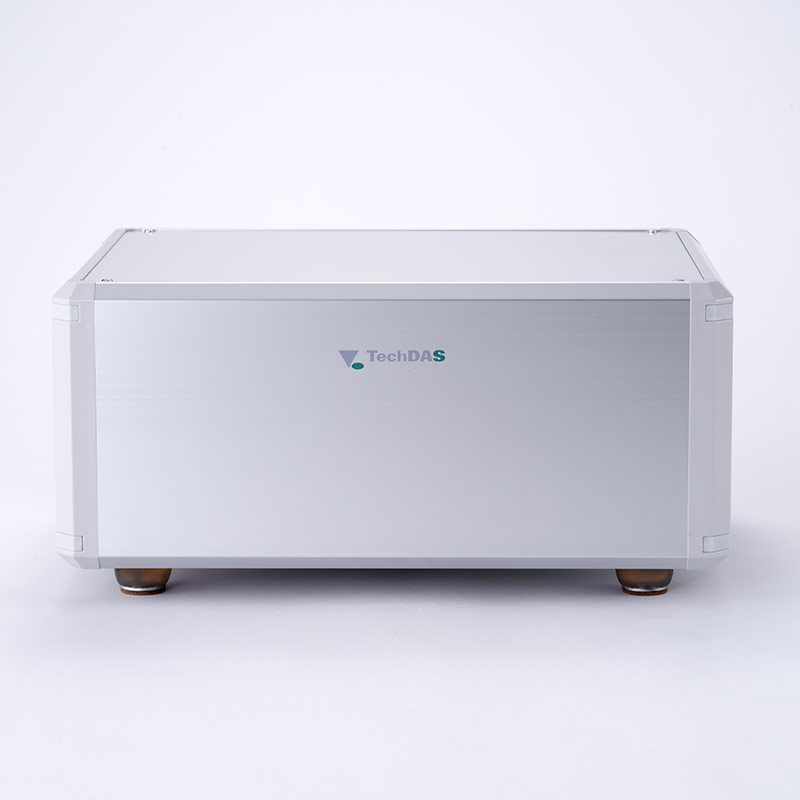

| POWER SUPPLY UNIT | |
| Power consumption | 50 W |
| Dimensions | 350(W), 160(H), 270 (D) mm |
| Weight | 9 kg |
| Minimum dimensions for setting up | 350(W) x 330(D）mm |
| ACCESSORIES | |

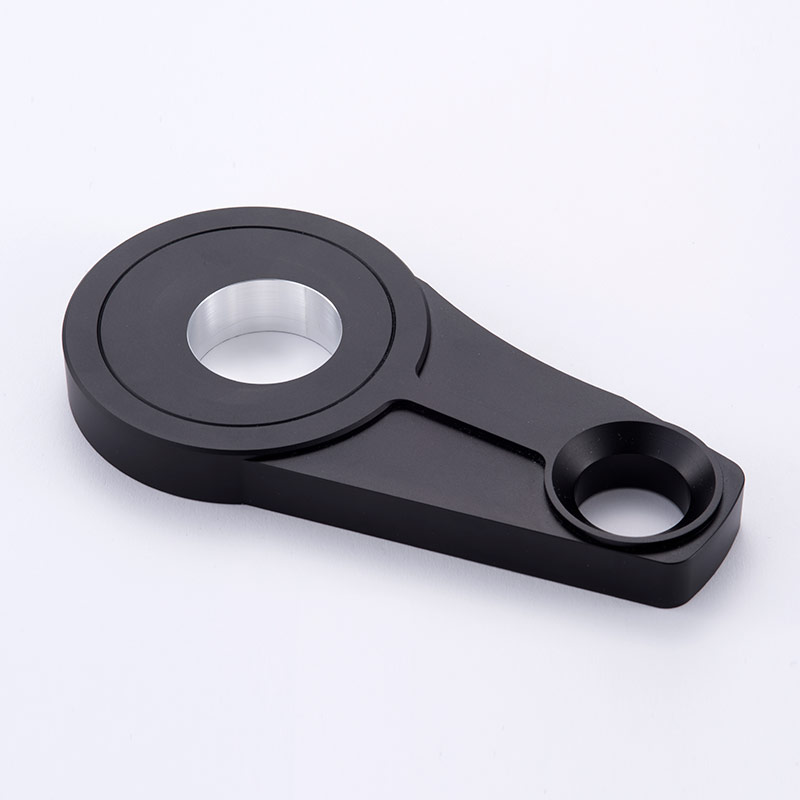

| INCLUDED ACCESSORIES | 1x Tonearm Base for rear right or front right positions (drilled for specified tonearm) 1x Platter Cover.Platter setup tools, Users manuals. |
| OPTIONAL ITEMS | Extra Tonearm Base (drilled for specified tonearm) – For the rear left position, an exclusive tonearm base is required. – Tonearm bases used on the rear right and front right positions are common with those for Air Force III/ Premium and Air Force V/ Premium. |
